Violin SE小提琴 2015全新特別版


Specification 規格

Design：2-way vented-box

Frequency Response：35Hz-40kHz

Sensitivity (2.83V/1m)：88dB

Impedance：8 ohms (minimum 6.4 ohms)

Power Requirement：30-150W recommended

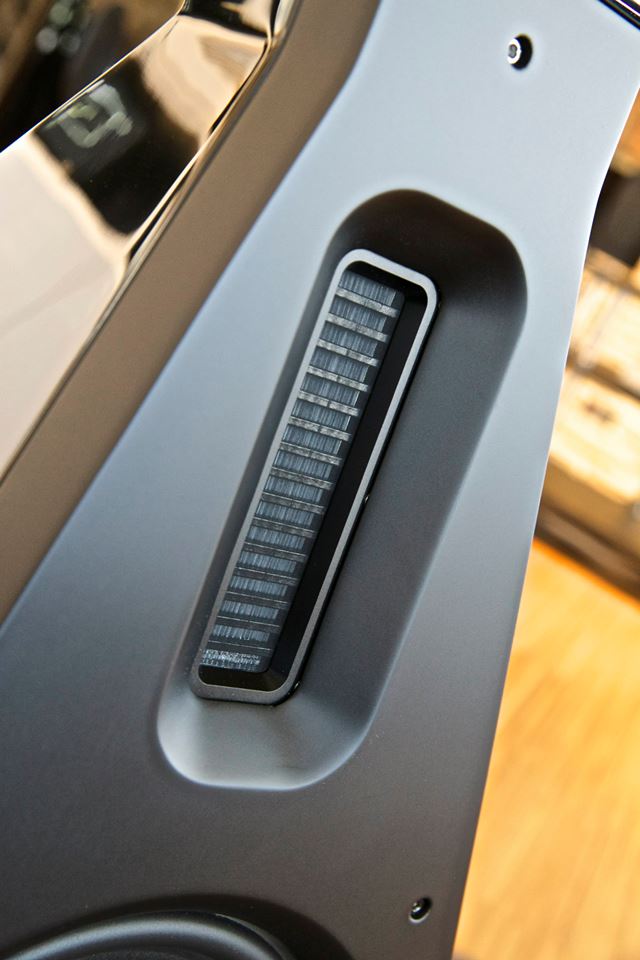

Tweeter：Air Motion Tweeter, the size of diaphragm is (LW)：25mm×120mm, easily field-replaceable for the diaphragm.

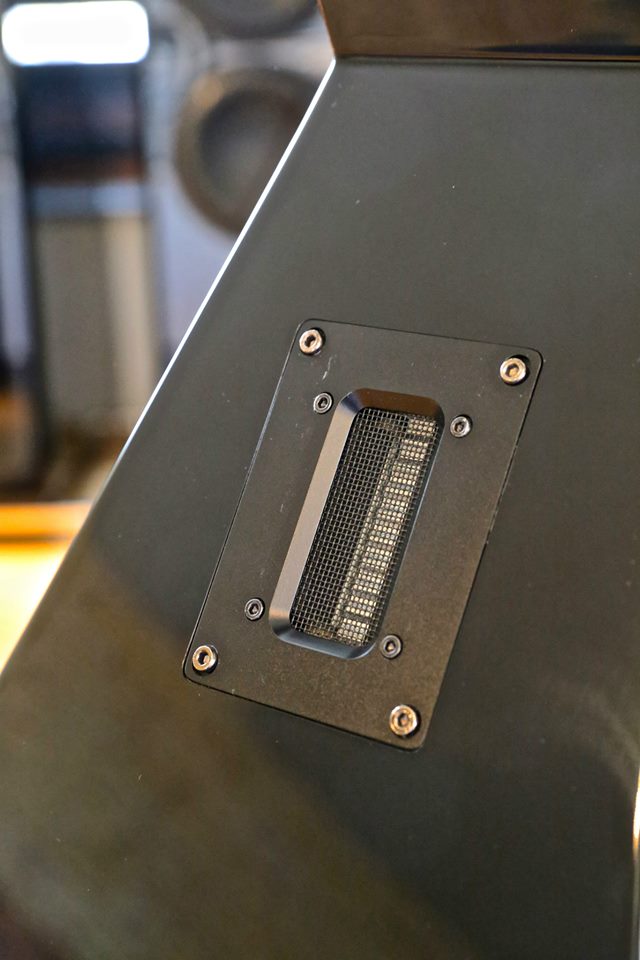

Rear Firing Tweeter：Purified aluminum ribbon tweeter, the size of aluminum ribbon60mm×8.5mm×0.01mm. High power handling, high output, shielded design, easily field-replaceable for the ribbon.

Midwoofer：1×200mm (8″). Aluminum frame, the sandwich cone of Non-woven carbon fiber+Cell+Non-woven carbon fiber, 50mm (2″) copper clad aluminum voice coil with flat wire, the special magnet system with Faraday ring and demodulation coil, 120mm×20mm Y30 Ferrite magnet.

Crossover Frequency：2kHz and 9kHz

Crossover’s Attenuation Slope：Woofer -12dB, Tweeter -18dB, Rear firing tweeter -12dB.

Crossover Components：High quality MKP capacitors. Also, high purified OFC

inductors and the metal oxide film resistors with military industrial standard.

Connective Cable：Teflon insulated OCC cable

Connections：2 pcs connectors

Cabinet Material：High quality MDF

Finish：Black piano paint and Rosewood

Speaker (HWD)：810mm×260mm×400mm (31.9″×10.2″×15.7″).

Net Weight：19.5kgs/pc (43lb/pc)

Stand (HWD): 310mm×350mm×430mm (12.2"×13.8"×16.9")
