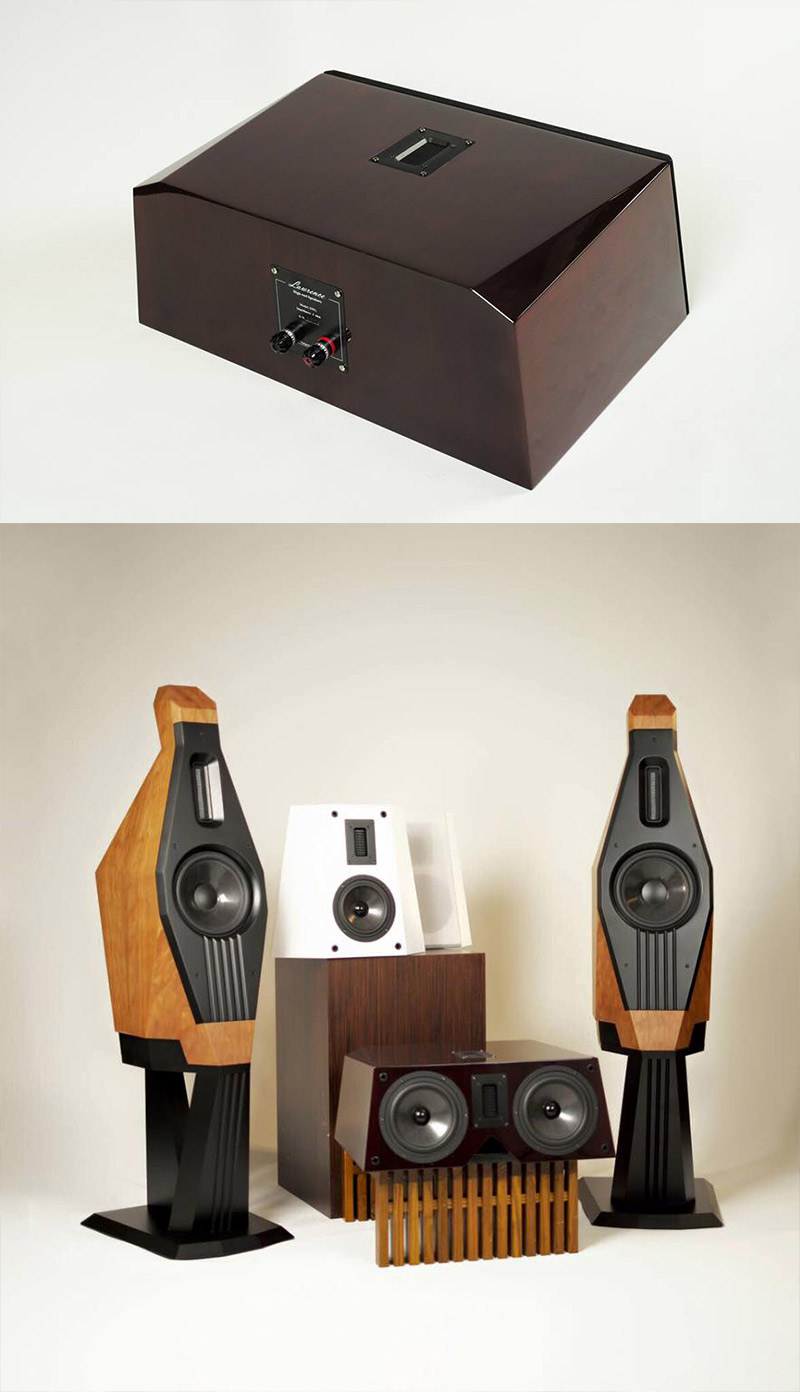

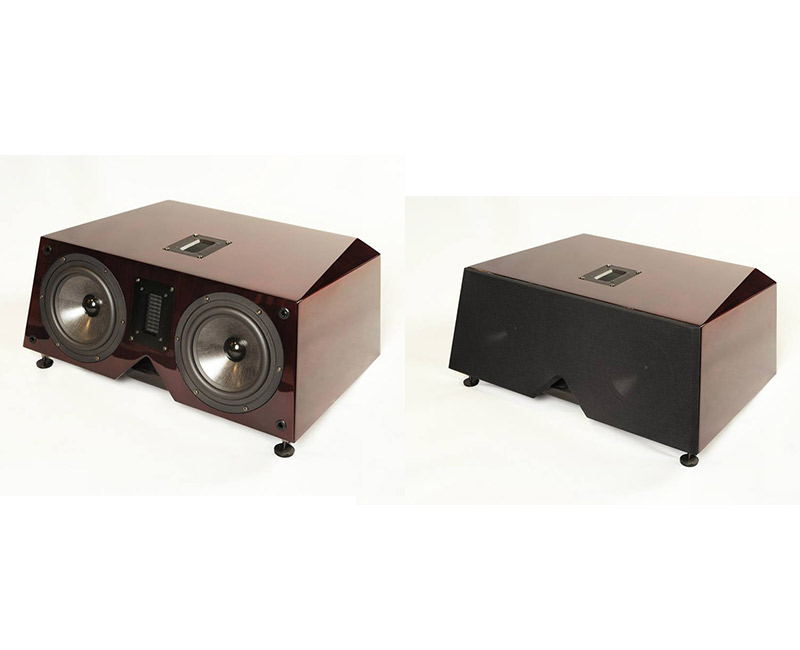

Owl 貓頭鷹


Specification 規格

DESIGN: 3-way vented-box

FREQUENCY RESPONSE: 40Hz-40kHz

SENSITIVITY (2.83V/1M): 90dB

IMPEDANCE: 4 ohms (minimum 3.2 ohms)

POWER REQUIREMENT: 50-150W recommended

TWEETER:

Air Motion Tweeter, the size of diaphragm is (LW)：25mm×60mm , easily field-replaceable for the diaphragm.

TOP FIRING TWEETER:

Sandwich aluminum ribbon tweeter, the size of aluminum ribbon

(LWT)：60mm×8.5mm×0.015mm. High power handling, high output, field-replaceable ribbon.

MIDWOOFER:

2×165mm (6.5″) . Aluminum frame, the composite cone of Non-woven

carbon fiber and Kevlar, 25mm (1″) copper clad aluminum voice coil with flat wire, 100mm×20mm Y30 ferrite magnet.

CROSSOVER FREQUENCY: 2900Hz

CROSSOVER ATTENUATION SLOPE: Woofer -12dB, Tweeter -18dB

CROSSOVER’S COMPONENTS:

High quality MKP capacitors. Also, high purified OFC inductors

CONNECTIVE CABLE: Teflon insulated OCC cable

TERMINALS: 2 pcs gold-plated copper connectors

CABINET MATERIAL: High quality MDF
