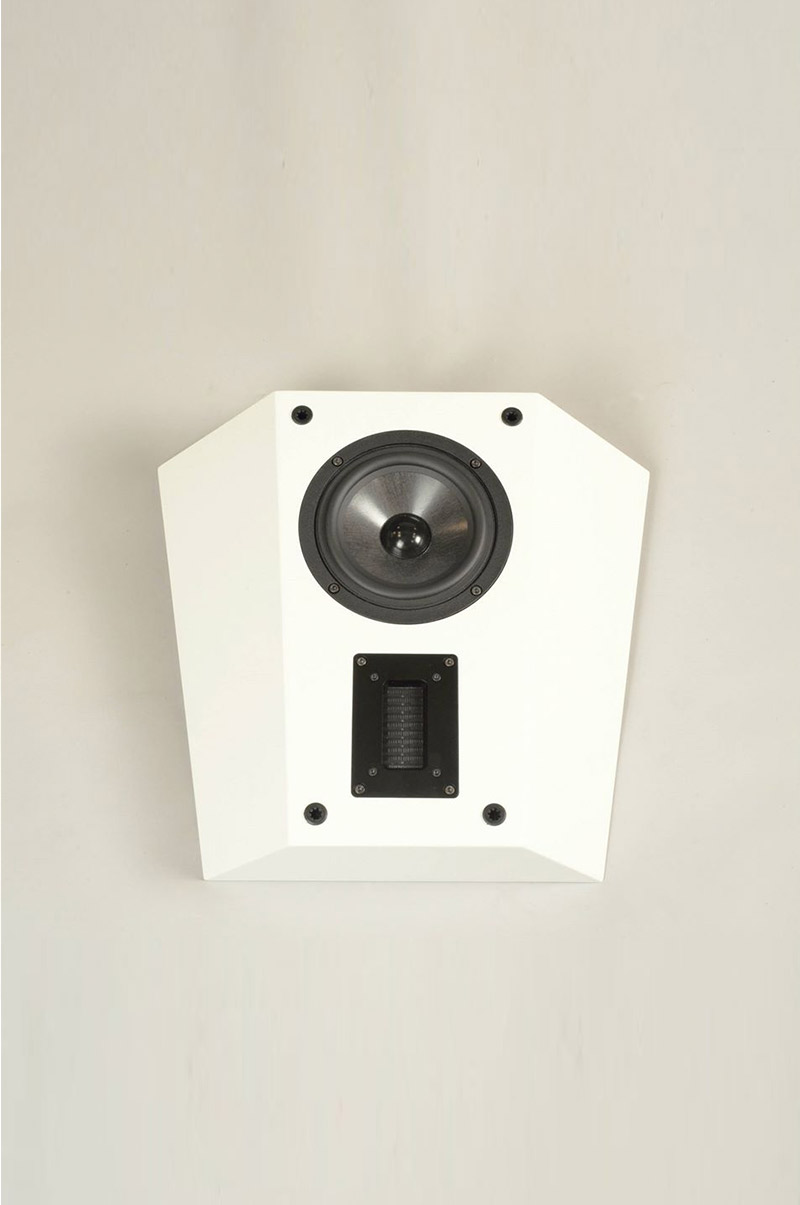

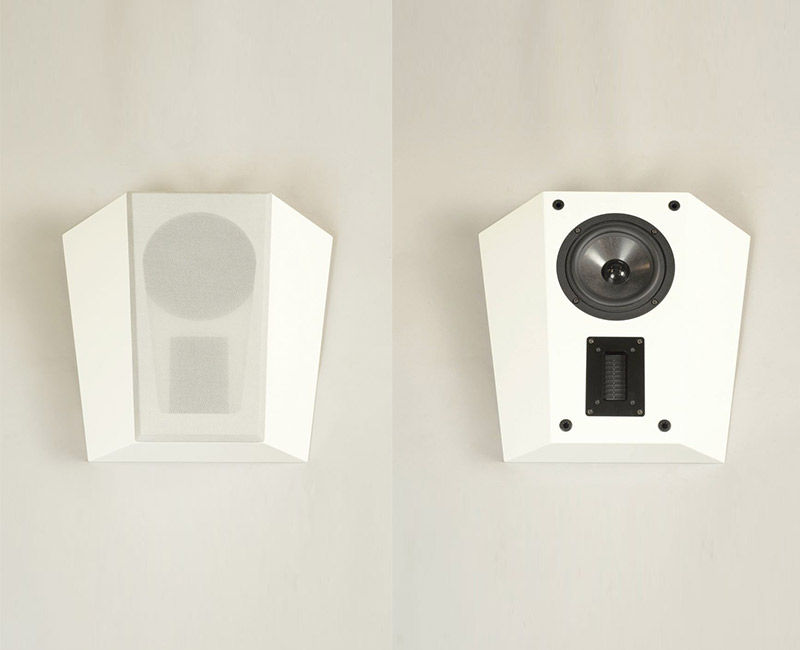

Bat 蝙蝠


Specification 規格

DESIGN: 2-way, 2-drivers

FREQUENCY RESPONSE: 65Hz-40kHz

SENSITIVITY (2.83V/1M): 89dB

IMPEDANCE: 8 ohms (minimum 6.4 ohms)

POWER REQUIREMENT: 50-150W recommended

TWEETER:

Air Motion Tweeter, the size of diaphragm is (LW)：25mm×60mm , easily field-replaceable for the diaphragm.

MIDWOOFER:

1×130mm (5.2″). Aluminum frame, the composite cone of Non-woven

carbon fiber and Kevlar, 25mm (1″) copper clad aluminum voice coil with flat wire, 100mm×20mm Y30 Ferrite magnet.

CROSSOVER FREQUENCY: 2900Hz

CROSSOVER ATTENUATION SLOPE: Woofer -12dB, Tweeter -18dB

CROSSOVER’S COMPONENTS:

High quality MKP capacitors. Also, high purified OFC inductors

CONNECTIVE CABLE: Teflon insulated OCC cable

TERMINALS: 2 pcs gold-plated copper connectors

CABINET MATERIAL / FINISH:

High quality MDF / White PU matt paint and white piano paint

DIMENSIONS (HWD): 35cm × 40cm × 11cm

NET WEIGHT: 5.9kgs/pc

GROSS WEIGHT: 16 kgs/2pcs

BOX DIMENSIONS: 53x40x51cm
