Violin 小提琴

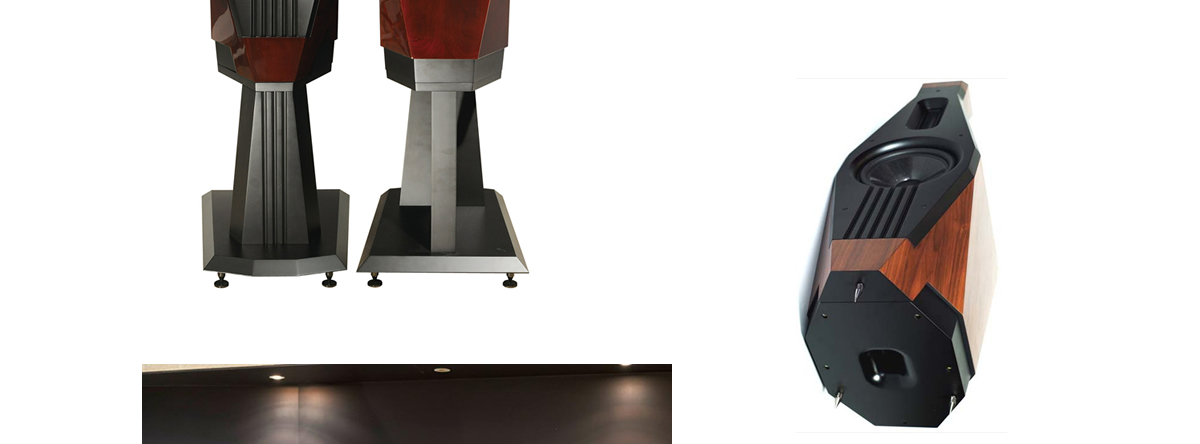

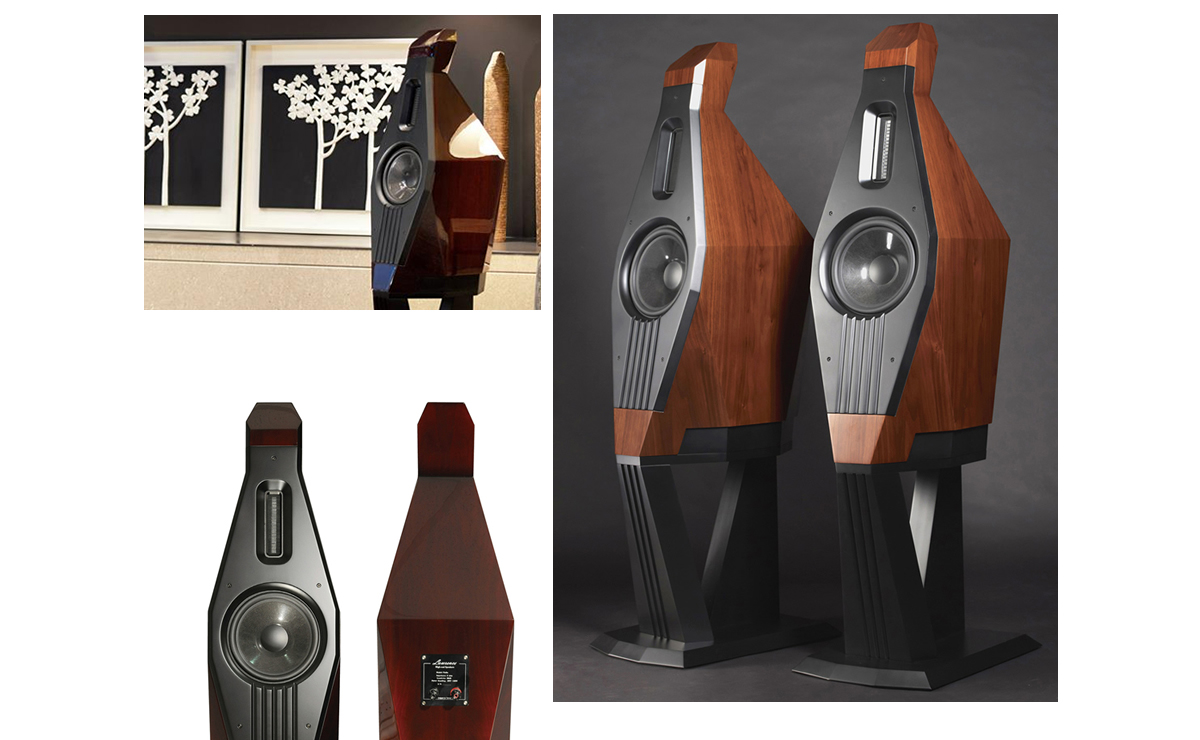

The Lawrence Audio Violin loudspeaker is a two way design with a high performance carbon fiber bass/midrange unit perfectly partnered with an top of the line ribbon tweeter which extends the frequency range up to 30k Hz. The Violin speaker delivers a very musical, engaging sound with a beautiful and natural midrange, tight articulate bass and nice open, pure and clear highs with excellent resolution and dynamics. The Violin's beautiful and unique cabinet design is intended to simulate the shape of a violin. Due to its lack of parallel surfaces, this design is also beneficial sonically as it helps reduce standing waves and diffraction allowing the drivers to produce a very clean and pure sound. In addition, it's polygonal, non equilateral shape allows for a narrow front baffle and an extremely rigid, non resonant cabinet. Ported on the bottom, the Violin delivers surprisingly deep, articulate bass. Custom speaker stands (included) are easily assembled, are also resonant damped and come with very nicely made spikes and discs.



Specification 規格

Design：2-way vented-box

Frequency Response：35Hz-40kHz

Sensitivity (2.83V/1m)：90dB

Impedance：8 ohms (minimum 6.4 ohms)

Power Requirement：30-150W recommended

Tweeter：Purified aluminum ribbon tweeter, the size of aluminum ribbon

(LWT)：130mm×8.5mm×0.01mm. High power handling, high output，shielded design , easily field-replaceable for the ribbon.

Midwoofer：1×200mm (8″). Aluminum frame, the sandwich cone of Non-woven carbon fiber+Cell+Non-woven carbon fiber, 50mm (2″) copper clad aluminum voice coil with flat wire, the special magnet system with Faraday ring and demodulation coil, 120mm×20mm Y30 Ferrite magnet.

Crossover Frequency：2200Hz

Crossover’s Attenuation Slope：Woofer -12dB, Tweeter -18dB

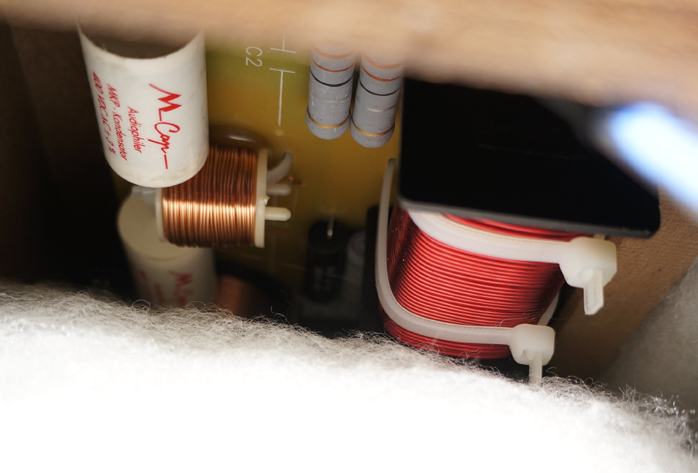

Crossover Components：High quality MKP capacitors. Also, high purified OFC inductors and the metal oxide film resistors with military industrial standard.

Connective Cable：Teflon insulated OCC cable

Connections：2 pcs connectors

Cabinet Material：High quality MDF

Finish：Cherry and Rosewood

Speaker (HWD)：810mm×260mm×400mm (31.9″×10.2″×15.7″).

Net Weight：19.5kgs/pc (43lb/pc)

Stand (HWD): 420mm×350mm×430mm (16.5"×13.8"×16.9")

Net Weight：7kgs/pc

Speaker Box Dimensions (HWD) ：1000mm×390mm×530mm (39.3″×15.3″×20.8″).

Gross Weight：27 kgs/pc (59.5 lb/pc)

Stand Box Dimensions (HWD) ：580mm×400mm×470mm (22.8″×15.7″×18.5″).

Gross Weight：17 kgs/2pcs (37.4 lb/2pcs)
