PACOLO

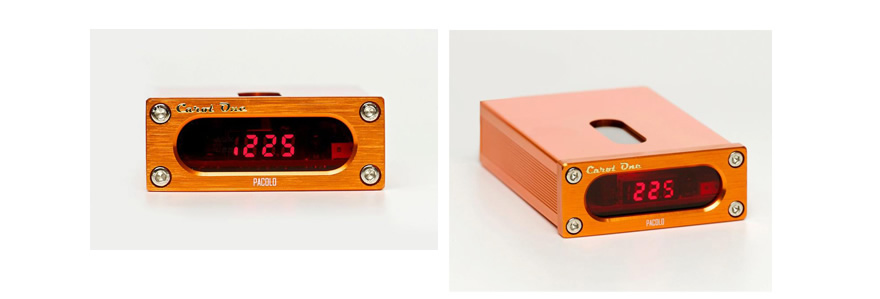

24 bit/96 kHz DAC. With its fashionable iridescent orange design and very small dimensions, the Gildolo is one of the world’s smallest and most beautiful audiophile-grade DACs!
• Only 65mm x 25mm x 98mm.

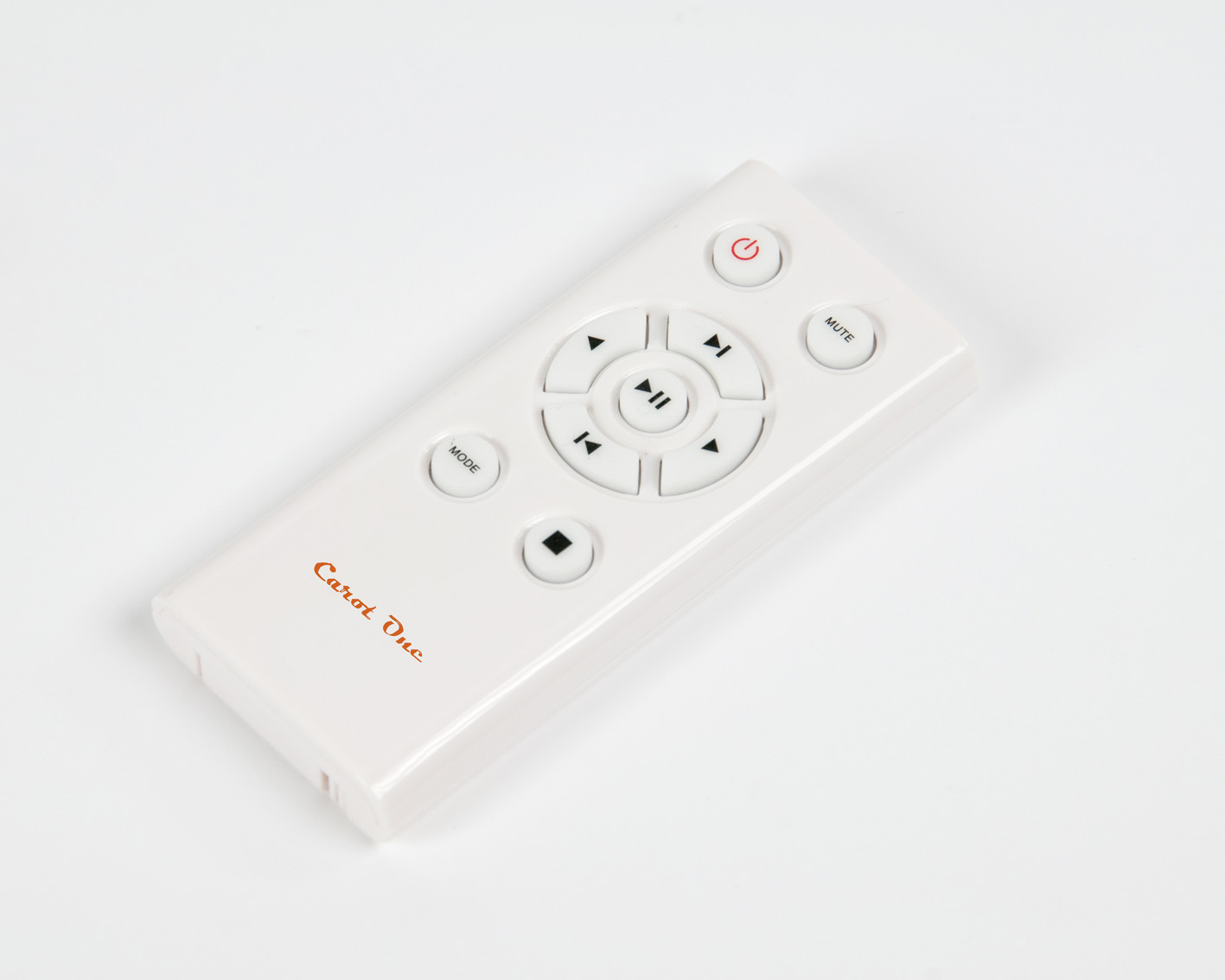

• Informative display with remote control
• Designed for extreme performance in a wide variety of audiophile systems

PRODUCT DESCRIPTION
Specification of Main Unit
• Signal-to-Noise Ratio (SNR) 98dB
• Frequency response 20 Hz – 20 kHz -1db
• THD + Noise 0.006%
• Maximum Sampling Rate 96K
• Bit Depth 16 bit / 24 bit
• Input Audio 3.5mm x 1
• USB 2.0 full speed compliant x 1
• Power Socket (5.5mm/2.1mm) x 1
• Output Audio OUT 3.5mm x 1
• Power Indicator 7 segment display x1
• Power Supply DC 12V-13V (max.)Dimensions (W)76mm x (H)60mm x (D)100mm

Specification of the AC Adaptor
• AC Input Universal AC 100V-240V/50-60Hz
• DC Output DC 12V 3.5A (42W)
• DC Plug DC 2.1mm
• Ripple & Noise <= 25mV
• Over-load Protection 105%-150%
• Over-voltage Protection 115%-150%
• Dimensions (L)78mm x (W)50mm x (H)33mm
