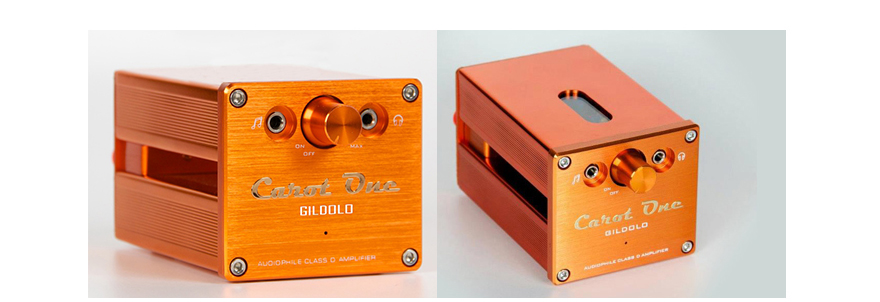

Integrated amplifier. Preamplifier and power amplifier sections are completely separate. With its fashionable iridescent orange design and very small dimensions, the Gildolo is one of the world’s smallest and most beautiful integrated amplifiers!
• Only 65mm x 60mm x 98mm.

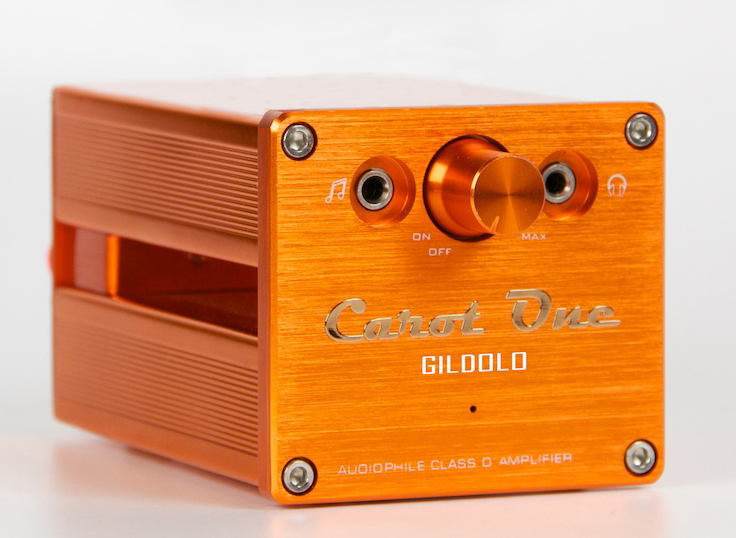

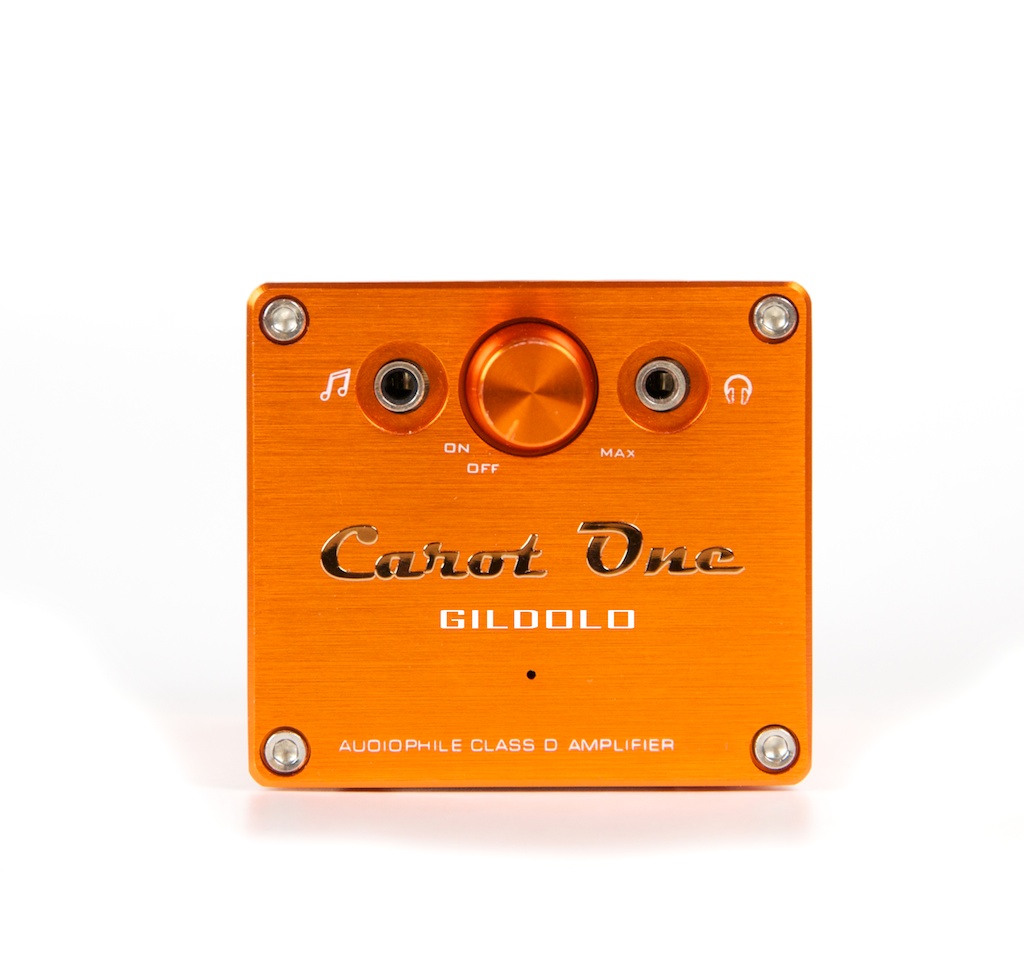

• Front panel jacks for headphones and iPod/iPhoneMP3 inputs.

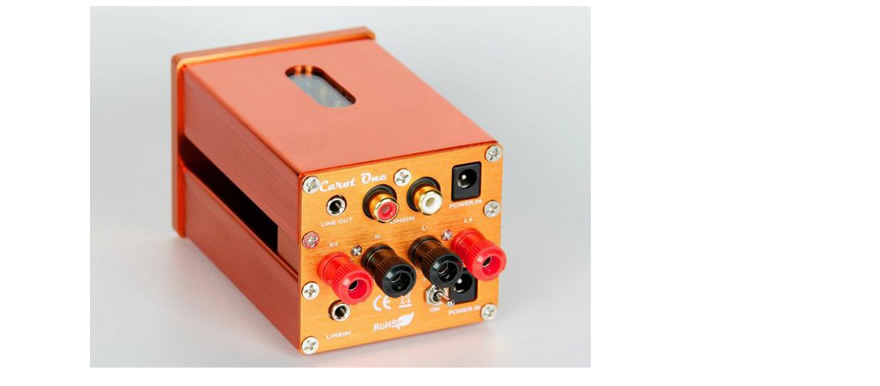

• Rear panel line level input for CD.
• Ideal complement for headphones, iPods, MP3 players and more. An ideal match for quality loudspeakers with efficiencies of 86-88 dB or more.
• Spectacular audio performance
CARATTERISTICHE TECNICHE
Specification of the Power Amplifier Unit
• T-Amp IC Tripath TA2024
• Output Power 2x15W @4ohm
• 2x6W @8ohm(RMS)
• Signal-to-Noise Ratio (SNR) 98dB
• Dynamic Range 98dB
• IHF IM Distortion 0.10% @ 1W, 4ohm
• THD+Noise Audiophile Quality 0.03% @ 9W 4ohm
• 0.1% @ 11W 4ohm
• 0.1% @ 6W 8ohm
• High Power 10% @ 15W 4ohm
• 10% @ 10W 4ohm
• Power Efficiency 81% @ 15W 4ohm
• 90% @ 10W 8ohm
• Input Audio IN RCA (Left/Right) x 1
• Power Socket (5.5mm/2.1mm) x 1
• Speaker OUT RJ45 x1
• Other Volume & Knob Power ON/OFF switch x
• Power Indicator (Blue LED) x1
• Power Supply DC 12V-13.2V (max.)
Specification of the Headphone Amplifier Unit
• Signal-to-Noise Ratio (SNR) 92dB
• Power Output 3.0 Watts per channel on 33 Ohm
• Headphone
• Frequency response 15 Hz – 100 kHz -1db
• Input Impedance 10k Ohms
• Input Audio CD IN RCA (Left/Right) x 1 [3Vpp max.]
Specification of the Pre Amplifier Unit
• Input Impedence 10K Ohms unbalanced
• Max Input Level +18dBV
• Frequency Response 25Hz – 150KHz (+/- 3dB)
• Output Power 450 mW/side,THD+N:0.1% (@16 Ohms)
• 108 mW/side,THD+N:0.1% (@300 Ohms)
• Power Socket (5.5mm/2.1mm) x 1
• Output Audio Headphone OUT 3.5mm jack x 1
• Switch Knob Audio and power switch x 1
• Power Supply DC 12V-13V (max.)

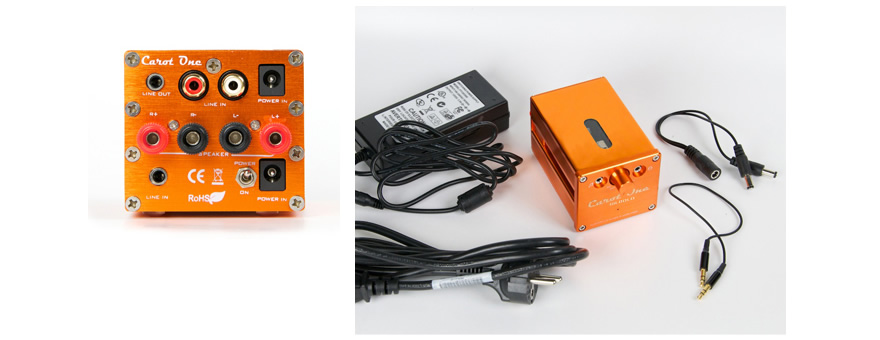

• 4.4 Specification of the AC Adaptor
• AC Input Universal AC 100V-240V/50-60Hz
• DC Output DC 12V 5A (60W)
• DC Plug DC 2.1mm
• Ripple & Noise <= 25mV
• Over-load Protection 105%-150%
• Over-voltage Protection 115%-150%
