FABRIZIOLO

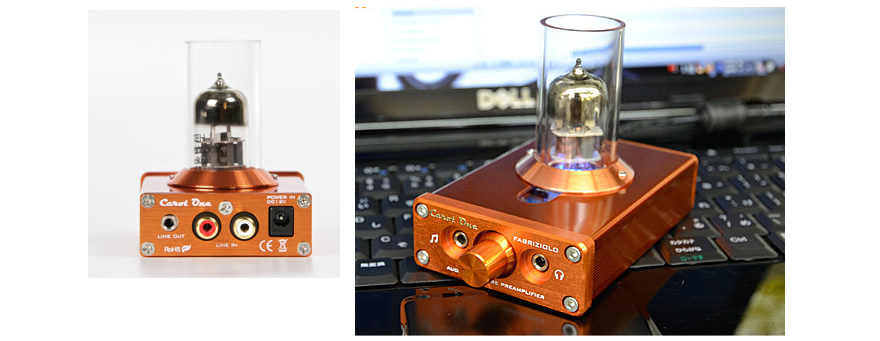

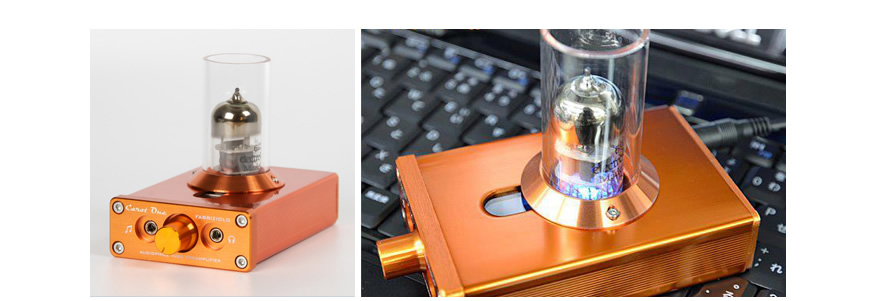

Tubed preamplifier with headphone amplifier. With its fashionable iridescent orange design and very small dimensions, the Fabriziolo is one of the world’s smallest and most beautiful preamplifiers!
• Only 65mm x 25mm x 98mm.

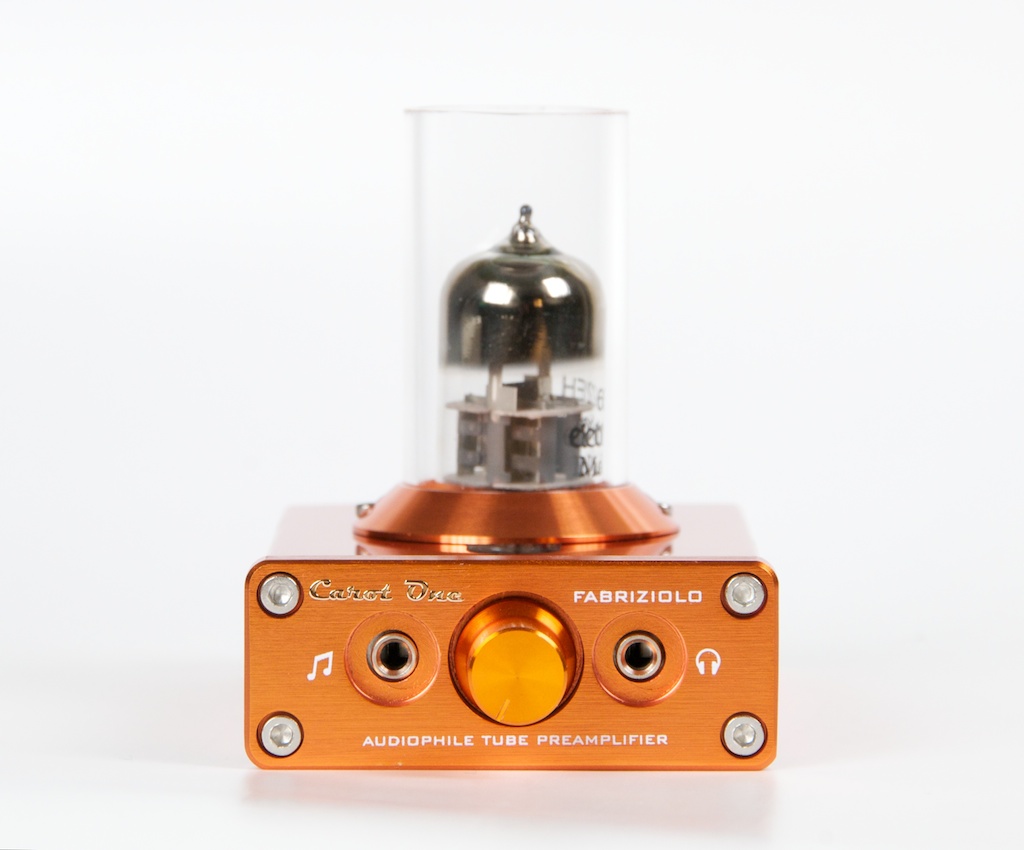

• Front panel jacks for headphones and iPod/iPhone/MP3 inputs.

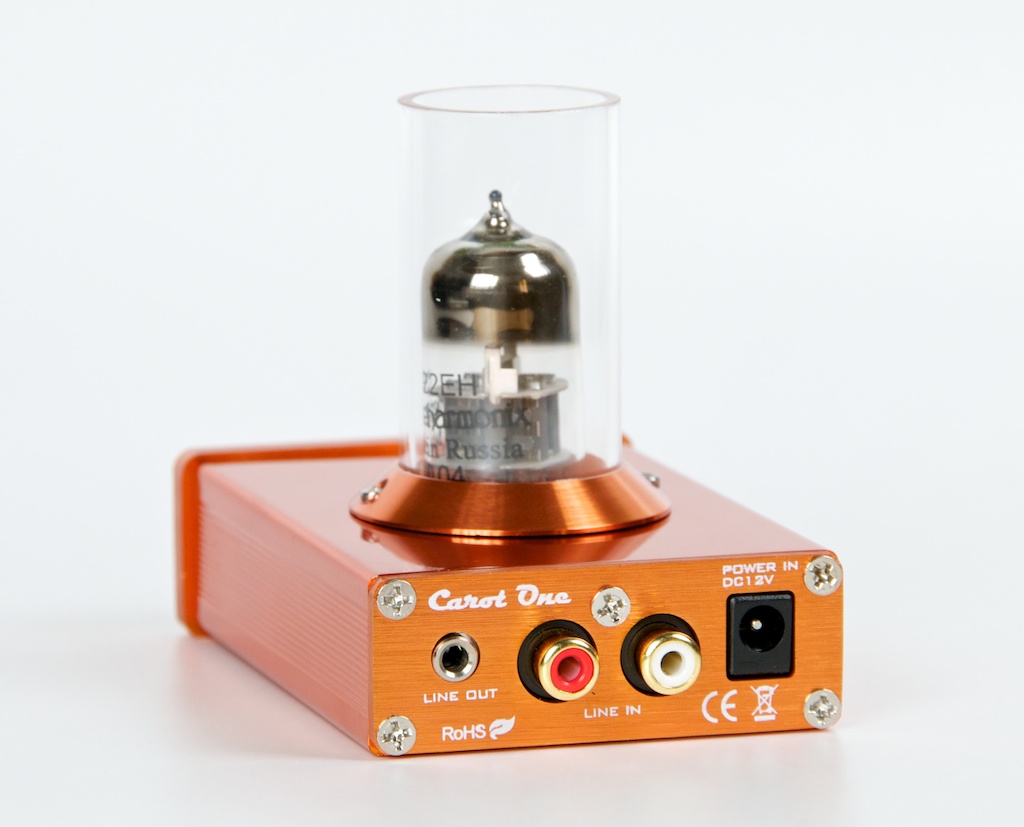

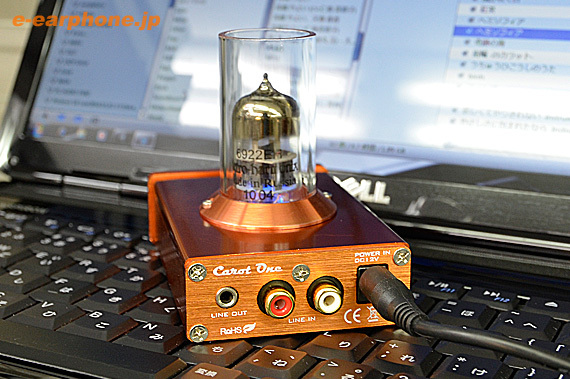

• Rear panel connections for power amplifiers, as well as rear panel line level input for CD.
• Ideal complement for headphones, iPods, MP3 players and more. Can be used with powered speakers for a complete system.Perfect for obtaining better sound from your PC.
• Spectacular audio performance!

FEATURES

Specification of the Headphone Amplifier Unit
• Signal-to-Noise Ratio: (SNR) 92dB
• Power Output: 3.0 Watts per channel on 33 Ohm Headphone
• Frequency response: 15 Hz – 100 kHz -1db
• Input Impedance: 10k Ohms
• Input Audio: CD IN RCA (Left/Right) x 1 [3Vpp max

Specification of the Pre Amplifier Unit
• Vacuum Tube: 6DJ8/6922 series or 12AU7 series (exchangeable)
• Signal-to-Noise Ratio (SNR): 92dB
• THD + Noise: 0.05% @ 10k ohm 0.15% @ 33 ohm
• Input Audio: CD IN RCA (Left/Right) x 1 [3Vpp max.]
• Power Socket: (5.5mm/2.1mm) x 1
• Output Audio: OUT 3.5mm x 1
• Headphone: OUT (3.5mm) x 1
• Knob Audio and power switch x 1
• Power Indicator: (Blue LED under Tube Socket) x1 Volume Knob x 1
• Power Supply DC 12V-13V (max.)
• Dimensions (W)76mm x (H)60mm x (D)100mm – 11 -

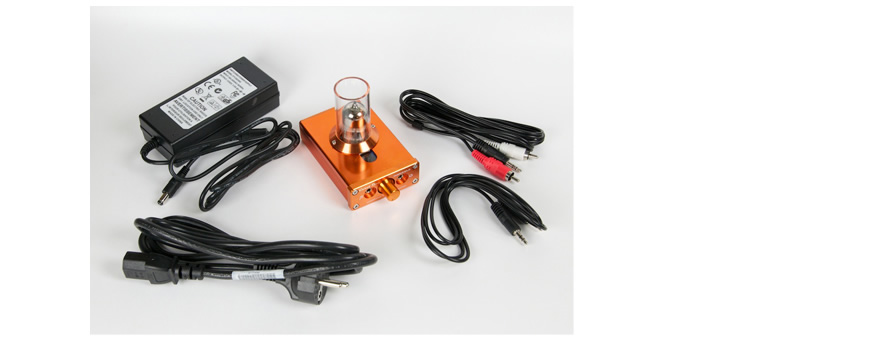

Specification of the AC Adaptor
• AC Input Universal: AC 100V-240V/50-60Hz
• DC Output: DC 12V 3.5A (42W)
• DC Plug: DC 2.1mm
• Ripple & Noise: <= 25mV
• Over-load Protection: 105%-150%
• Over-voltage Protection: 115%-150%
• Dimensions (L)78mm x (W)50mm x (H)33mm
