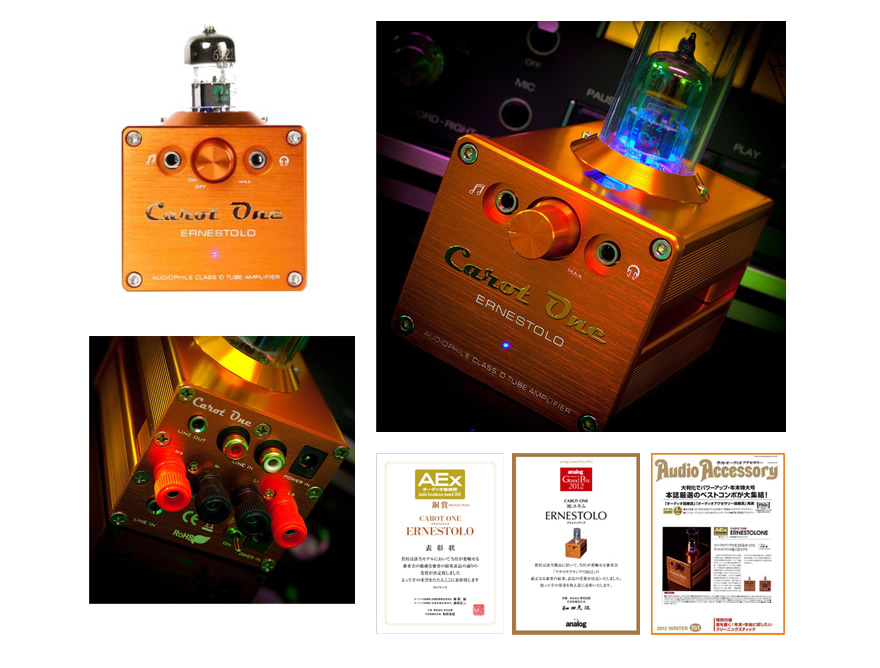

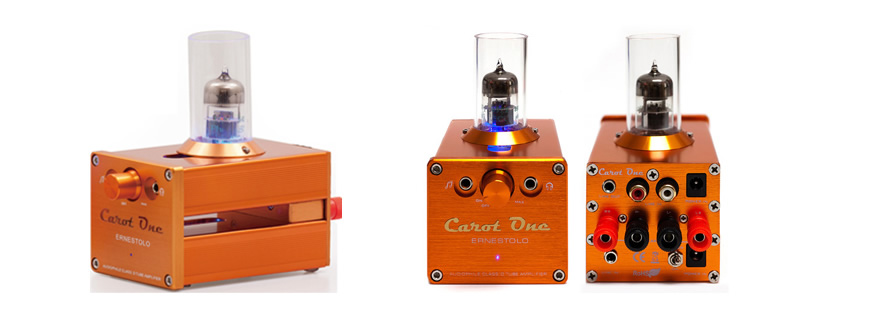

Tube integrated amplifier. The tube preamplifier section of the Ernestolo contributes to the sweet, silky sound throughout the mid and high frequencies. With its fashionable iridescent orange design and very small dimensions, the Ernestolo is one of the world’s smallest and most beautiful tube integrated amplifiers!
World premiere at the Top Audio Show 2010.
• Only 65mm x 60mm x 98mm
• 6 watts+6 watts 8 Ohm RMS
• 9 watts+9 watts 6 Ohm RMS
• 11 watts+11 wattS 4 Ohm RMS
• Front panel jacks for headphones and iPod/iPhone/MP3 input, rear panel connection for line level input
• An ideal match for quality loudspeakers with efficiencies of 86-88 dB or more
• Spectacular audio performance!
FEATURES
• T-Amp IC Tripath TA2024
• Output Power 2x15W @4ohm
• 2x6W @8ohm(RMS)
• Signal-to-Noise Ratio (SNR) 98dB
• OrnareNullam Dolor
• Dynamic Range 98dB
• IHF IM Distortion 0.10% @ 1W, 4ohm
• THD+Noise Audiophile Quality 0.03% @ 9W 4ohm
• 0.1% @ 11W 4ohm
• 0,1% @ 9W 6 ohm
• 0.1% @ 6W 8ohm
• High Power 10% @ 15W 4ohm
• 10% @ 10W 4ohm
• Power Efficiency 81% @ 15W 4ohm
• 90% @ 10W 8ohm
• Input Audio IN RCA (Left/Right) x 1
• Power Socket (5.5mm/2.1mm) x 1
• Speaker OUT RJ45 x1
• Other Volume & Knob Power ON/OFF switch x
• Power Indicator (Blue LED) x1
• Power Supply DC 12V-13.2V (max.)5 A
Specification of the Headphone Amplifier Unit:
• Signal-to-Noise Ratio (SNR) 92dB
• Power Output 3.0 Watts per channel on 33 Ohm
• Headphone
• Frequency response 15 Hz – 100 kHz -1db
• Input Impedance 10k Ohms
• Input Audio CD IN RCA (Left/Right) x 1 [3Vpp max.]
Specification of the Pre Amplifier Unit:
• Vacuum Tube 6DJ8/6922 series or 12AU7 series (exchangeable)
• Signal-to-Noise Ratio (SNR) 92dB
• THD + Noise 0.05% @ 10k ohm 0.15% @ 33 ohm
• Input Audio CD IN RCA (Left/Right) x 1 [3Vpp max.]
• Power Socket (5.5mm/2.1mm) x 1
• Output Audio OUT 3.5mm x 1
• Headphone OUT (3.5mm) x 1
• Knob Audio and power switch x 1
• Power Indicator (Blue LED under Tube Socket) x1
• Volume Knob x 1
• Power Supply DC 12V-13V (max.)5A
• Dimensions (W)76mm x (H)60mm x (D)100mm
• Specification of the AC Adaptor
• AC Input Universal AC 100V-240V/50-60Hz
• DC Output DC 12V 5A (48W)
• DC Plug DC 2.1mm
• Ripple & Noise <= 25mV
• Over-load Protection 105%-150%
• Over-voltage Protection 115%-150%
• Dimensions (L)78mm x (W)50mm x (H)33mm
Accessories
• 3.5MM jumper cable x 1
• 2.1MM Power bifurcation line x 1
• Tube x1
• +12V power supply x 1
• Over-load Protection 105%-150%
• User Guide x 1
