SUPER ERNESTOLO

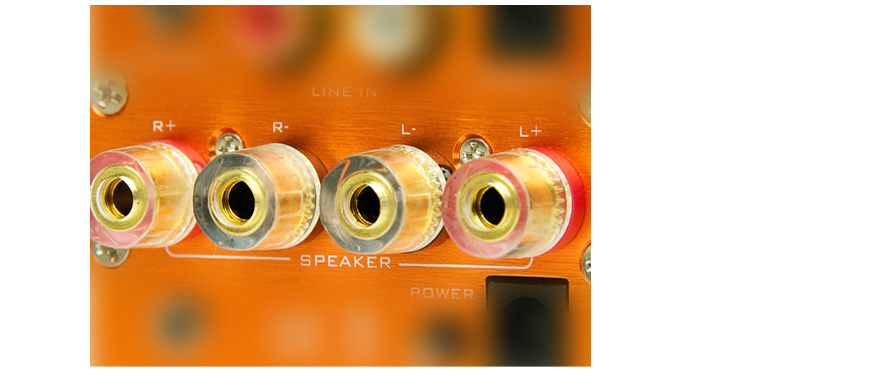

As a result of numerous awards and great successes here SUPER ERNESTOLO !!! Same size but with twice the power of ERNESTOLO !!!    In addition 'the connectors for the speakers are gold plated!!!
   Tube amp: tube preamp – power amp with 25 watts per channel!!!
   Fashion design (orange iridescent) Sizes 65mm x 60mm x 98mm
   In a very short time worldwide success!!!

Power:
• 12 watts+ 12 watts 8 Ohm RMS
• 18 watts+ 18 watts 6 Ohm RMS
• 25 watts+ 25 wattS 4 Ohm RMS
• Front panel jacks for headphones and iPod/iPhone/MP3 input, rear panel connection for line level input

An ideal match for great quality loudspeakers
Spectacular audio performance!

FEATURES:

Specification of the Power Amplifier Unit
• Output Power
• 2x25W 4ohm
• 2x12W 8ohm(RMS)
• Signal-to-Noise Ratio (SNR) 98dB
• Dynamic Range 98dB
• THD+Noise Audiophile Quality 0.03% 9W 4Ohm
• 0.15% 8W 4Ohm
• 0.11% 6W 8Ohm
• High Power 10% 15W 4Ohm
• 10% 10W 4Ohm
• Input Audio IN RCA (Left/Right) x 1
• Power Socket 2.1mm x 1
• Speaker OUT Banana socket x4
• Other Volume & Knob Power ON/OFF switch x
• Power Indicator (Blue LED) x1
• Power Supply DC 12V-13.2V (max.)

Specification of the Headphone Amplifier Unit
• Signal-to-Noise Ratio (SNR) 92dB
• Power Output 600m Watts per channel on 32 Ohm
• Headphone
• Frequency response 15 Hz – 100 kHz -1db
• Input Impedance 10k Ohms
• Input Audio CD IN RCA (Left/Right) x 1 [3Vpp max.]

Specification of the Pre Amplifier Unit
• Vacuum Tube 6DJ8/6922 series or 12AU7 series (exchangeable)
• Signal-to-Noise Ratio (SNR) 92dB
• THD + Noise 0.05% 10k ohm 0.15% 33 ohm
• Input Audio CD IN RCA (Left/Right) x 1 [3Vpp max.]
• Output Audio OUT 3.5mm x 1
• Headphone OUT (3.5mm) x 1
• Knob Audio and power switch x 1
• Power Indicator (Blue LED under Tube Socket) x1
• Volume Knob x 1
• Power Supply DC 12V-13V (max.)
• Dimensions (W)76mm x (H)60mm x (D)100mm

Specification of the AC Adaptor
• AC Input Universal
• AC 100V-240V/50-60Hz
• DC Output
• DC 12V 5A (60W)
• DC Plug
• DC 2.1mm
• Ripple & Noise <= 25mV
• Over-load Protection 105%-150%
• Over-voltage Protection 115%-150%
• Dimensions (L)78mm x (W)50mm x (H)33mm
